Technical Data
R&D Projects
National Projects
-
02
Development of Smart Dynamo with Simulated Driving Function for Optimal Tuning of Electric Vehicle (EV) Driving Motor
Project Period : 2019.12 ~ 2020.12
Development of Smart Dynamo with Simulated Driving Function for Optimal Tuning of Electric Vehicle (EV) Driving Motor
- Supervising Organization Korea Industrial Complex Corporation (KICOX)
- Lead Organization iRAE System Industry
- Participating Organizations Changwon National University Industry Academic Cooperation Foundation
- Project Period 2019.12 ~ 2020.12

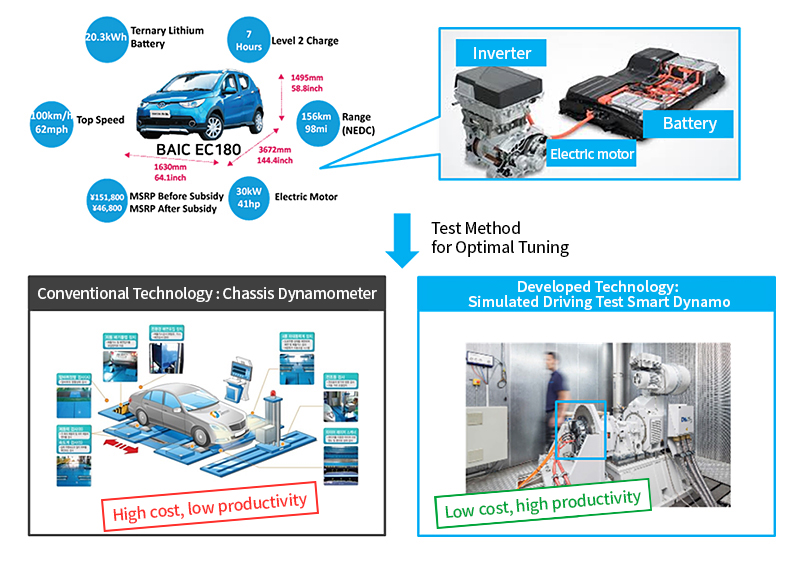

Development of a smart dynamo system that enables a simulated driving test on efficiency-mapping automation and motor dynamometer for EV driving motor IPMSM, based on the KS R 1183 driving mode simulation technology received from Korea Automotive Technology Institute and Korea Electrotechnology Research Institute
-
01
Development of a Loss Data Analysis and Diagnosis System for Response to International Efficiency Regulations and Manufacturing Innovation of Industrial Motors
Project Period : 2019.06 ~ 2020.05
Development of a Loss Data Analysis and Diagnosis System for Response to International Efficiency Regulations and Manufacturing Innovation of Industrial Motors
- Supervising Organization Korea Technology and Information Promotion Agency (TIPA)
- Lead Organization iRAE System Industry
- Participating Organizations Art Hands
- Project Period 2019.06 ~ 2020.05

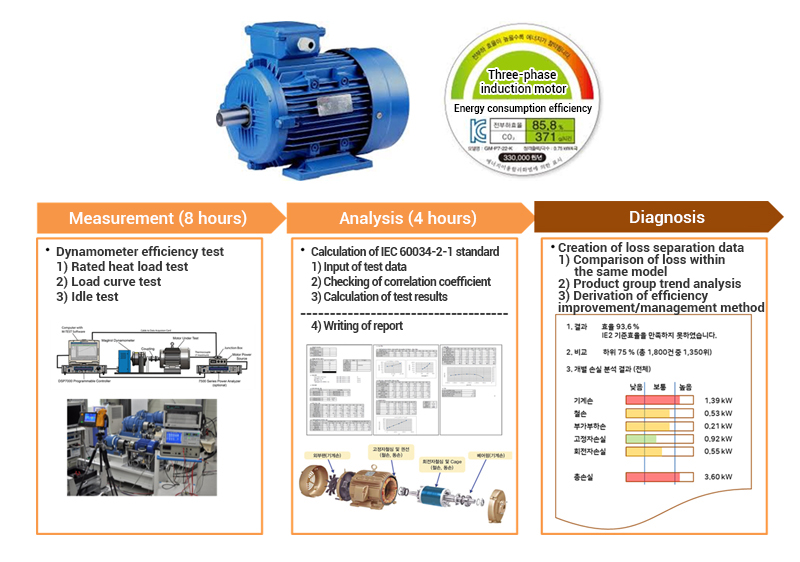

Development of S/W that automatically calculates individual loss of IEC 60034-2-1, which corresponds to the minimal efficiency IE3 of industrial 3-phase induction motors, including functions to analyze the cause of low efficiency by creating a DB of calculated individual loss and estimating measurement uncertainty through repeated tests
Research Projects
-
02
(Fuel Cell Propulsion Ship) Technical Support on Basic Design of Load Tester
Project Period : 2019.10 ~ 2019.12
(Fuel Cell Propulsion Ship) Technical Support on Basic Design of Load Tester
- Supervising Organization Korean Marine Equipment Research Institute (KOMERI)
- Lead Organization iRAE System Industry
- Project Period 2019.10 ~ 2019.12

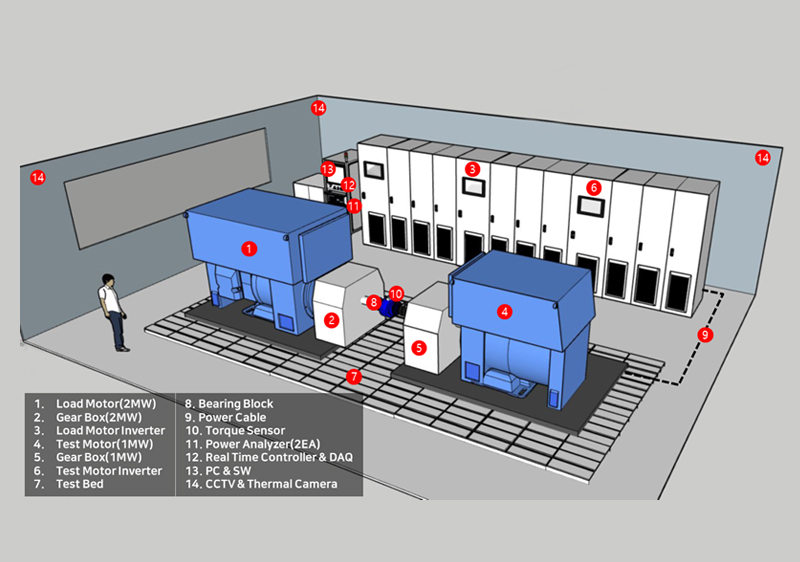

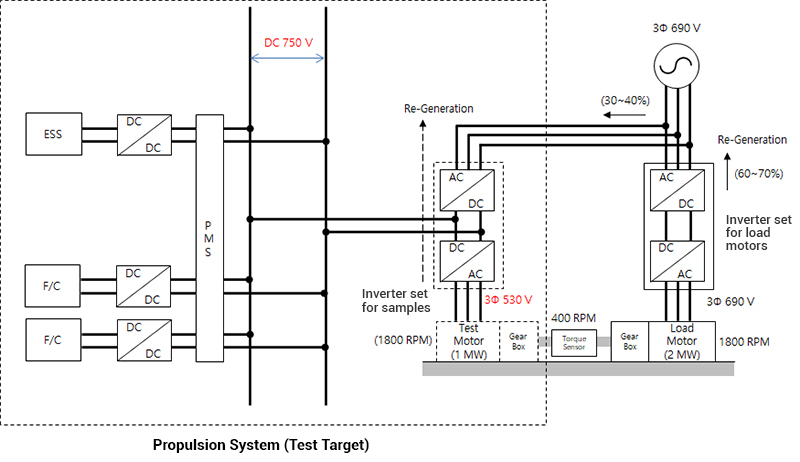

Basic design of a 2MW propulsion system for fuel cell propulsion ships and a dynamo system for system-linked land testing
-
01
Development of Eddy Current Loss Measurement Technology Reflecting Harmonics Conditions
Project Period : 2020.04 ~ 2021.03
Development of Eddy Current Loss Measurement Technology Reflecting Harmonics Conditions
- Supervising Organization Hyundai-Kia Automotive Group
- Lead Organization iRAE System Industry
- Project Period 2020.04 ~ 2021.03

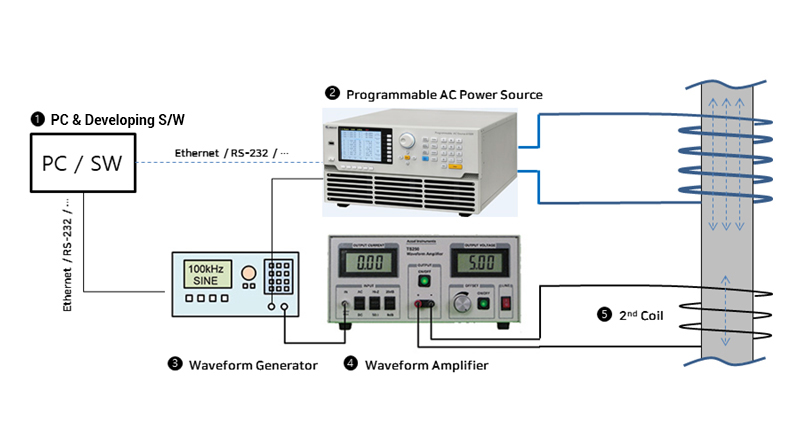

Development of permanent magnet (PM) eddy current loss measurement technology and system for driving motor IPMSM / development of technology and measurement system that implement magnetic fields containing harmonic waves, application to PM materials by considering time-harmonics from current harmonic waves and space-harmonics from motor slot/winding structure
